Alma Calibration Loads - available for purchase

Having built the Calibration Loads for ALMA, we are pleased to be able to offer copies
of the Ambient and Hot Loads to the radiometer community.

Drawing upon our multi-layer cone technology, developed in conjunction with colleagues
in the IAP, Bern, and folded cone configuration (protected by patent application ESO 11 007 146.1)

  • cover the whole of the ALMA bands from 31 to 950 GHz,
  • have very good S11 reflectrivity to miminise standing
    waves offsets and
  • the design has been validated by ESO with extensive modelling and testing.

As such they provide an inexpensive path to good radiometer calibration.

There are more techincal details here

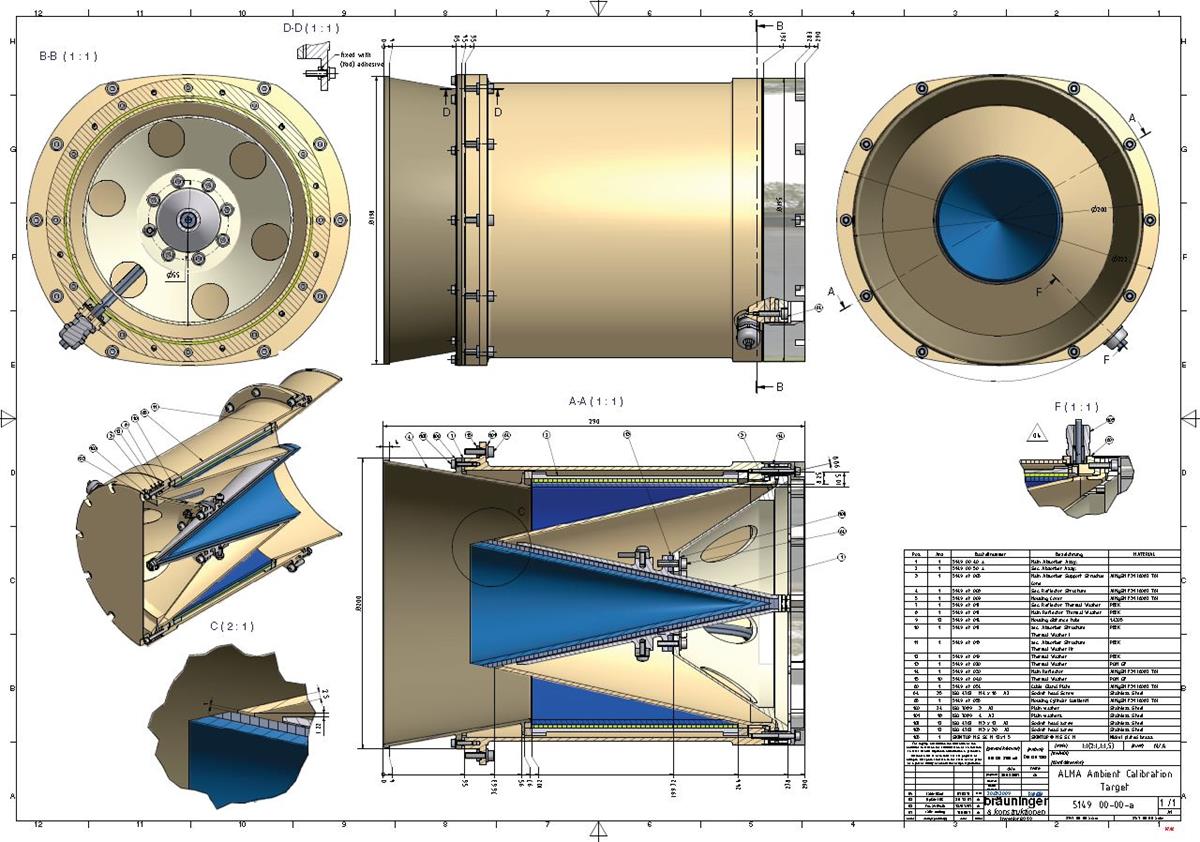

Ambient Load form is given here

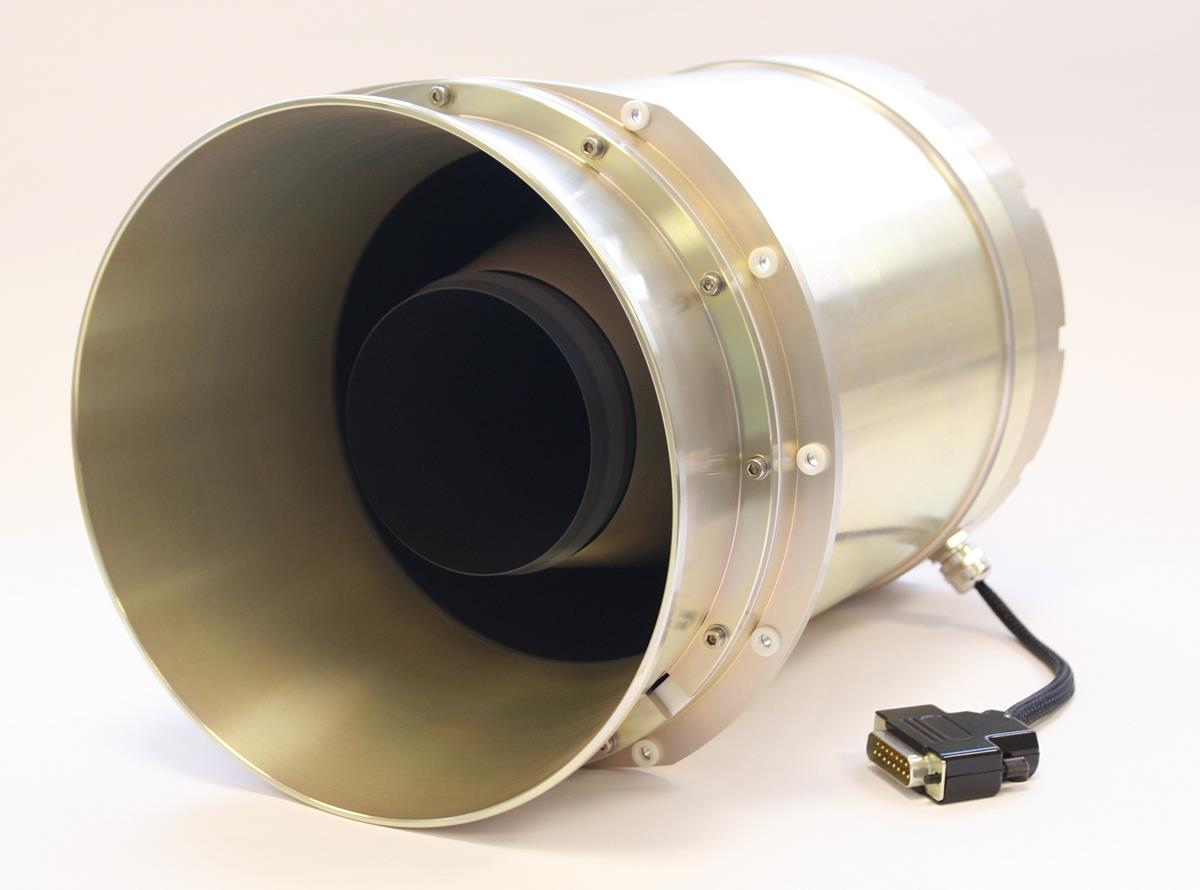

 Ambient

 and realised in hardware thus:

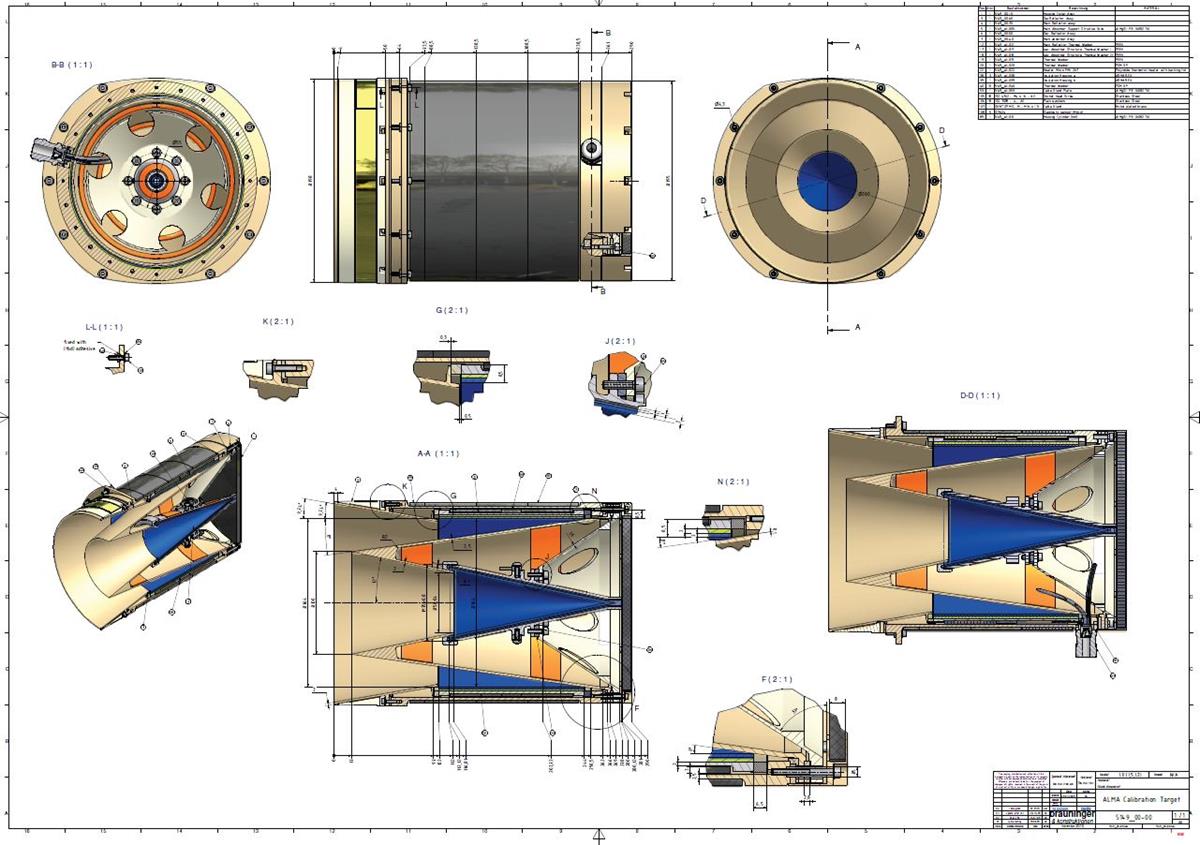

and the Hot Load - operating just below 90C -  is shown here

 Hot LOAD

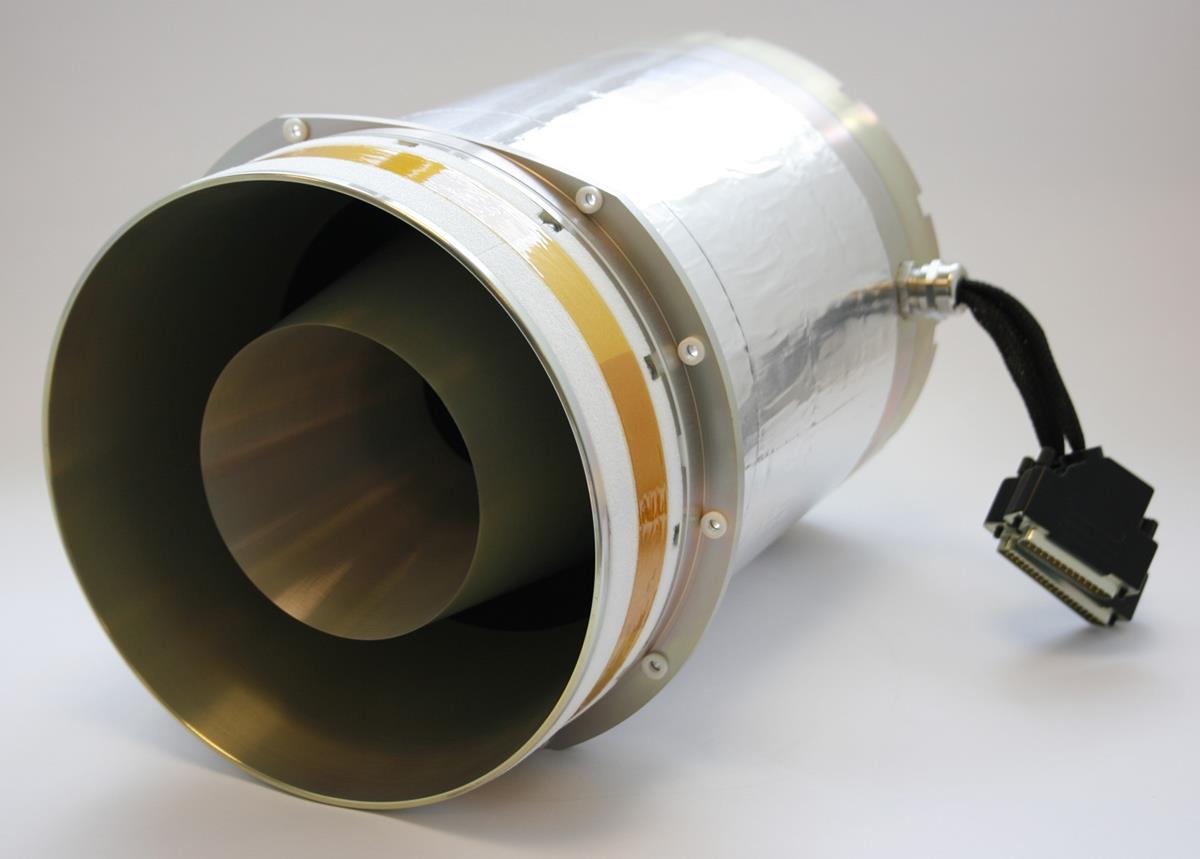

and look like this when realised in hardware





Thomas Keating Ltd is a Licensee of the ESO ALMA loads
Technology developed and transfered by ESO (www.eso.org)*.



* Technology partialy protected by patent application, ESO, 11 007 146.1
